Professional
Aluminum Processing Team

Can be manufactured around
the clock, 7 days a week.

  • Type

  • Extrusion Heat sink

  • Process

  • Extrusion

  • Extra Process

  • Extrusion+CNC Machining

  • Material

  • AL 6061、AL6063

  • Size/Color

  • customized

  • Surface  treatment

  • Sandblasting, Wire Drawing, Painting, Electroplating, Anodizing

  • Quality Control

  • full inspection

  • Application

  • Mechanical Equipment、Source、Electronic Devices

  • OEM

  • Accept

Extrusion001
more
inquire Resource downloads
Walmate extruded aluminum heat sink for switching power supplies – full product view
Power supply heat sink – straight fin extrusion profile and mounting surface detail
UPS cooler – extruded fin array and base thickness close-up
Extruded heat sink installed inside a switch-mode power supply assembly
Walmate extruded aluminum heat sink for switching power supplies – full product view
Power supply heat sink – straight fin extrusion profile and mounting surface detail
UPS cooler – extruded fin array and base thickness close-up
Extruded heat sink installed inside a switch-mode power supply assembly

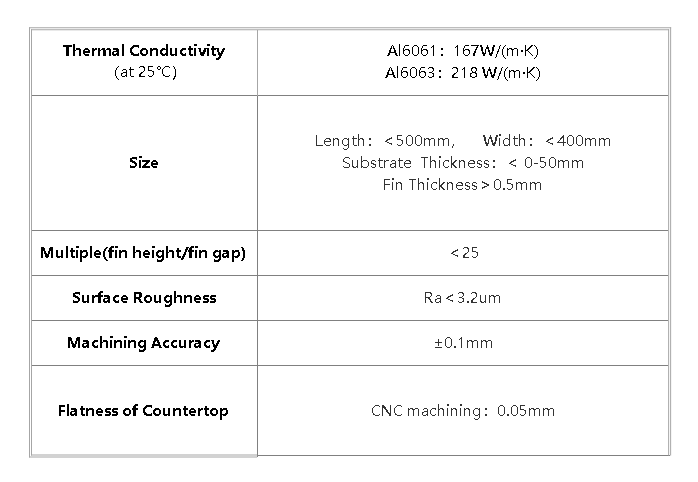

CHARACTERISTICS
KEY POINT OF DESIGN

Key points of profile heat sinks design

1、The appearance of the heat sink should consider aesthetics and space utilization efficiency.

2、The internal flow channels of the heat sink should be as simple as possible to ensure smooth flow of the cooling medium.

3、Design the shape and size of the heat sink according to actual needs to increase the heat transfer area.

4、A reasonable support structure should be designed at the bottom of the heat sink to improve its stability and structural strength.
