Professional
Aluminum Processing Team

Can be manufactured around
the clock, 7 days a week.

  • Type

  • Extrusion Heat sink

  • Process

  • Extrusion

  • Extra Process

  • Extrusion+CNC Machining

  • Material

  • AL 6061、AL6063

  • Size/Color

  • customized

  • Surface  treatment

  • Sandblasting, Wire Drawing, Painting, Electroplating, Anodizing

  • Quality Control

  • full inspection

  • Application

  • Mechanical Equipment、Source、Electronic Devices

  • OEM

  • Accept

Extrusion 002
more
inquire Resource downloads
Inverter heat sink – plate-fin extrusion geometry and air flow channel detail
Servo drive heat sink – IGBT mounting interface and through-hole detail
Walmate extruded heat sink- Smooth surface – overall appearance
Extruded aluminum heat sink– OEM‑tailored dimensions-mounting features
Inverter heat sink – plate-fin extrusion geometry and air flow channel detail
Servo drive heat sink – IGBT mounting interface and through-hole detail
Walmate extruded heat sink- Smooth surface – overall appearance
Extruded aluminum heat sink– OEM‑tailored dimensions-mounting features

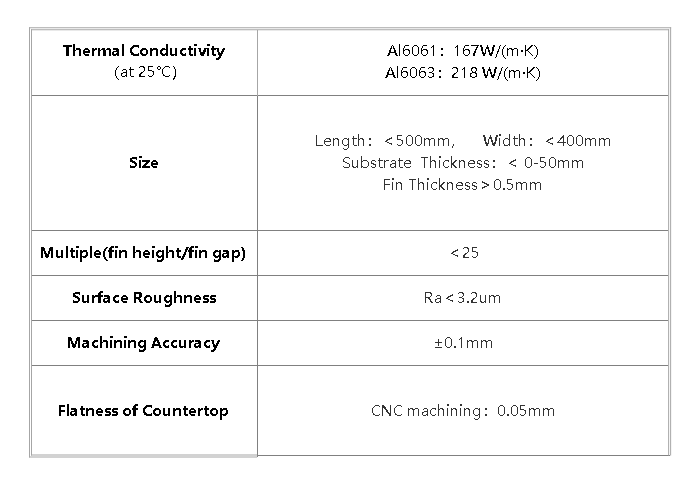

CHARACTERISTICS
KEY POINT OF DESIGN

Key points of profile heat sinks design

1、The appearance of the heat sink should consider aesthetics and space utilization efficiency.

2、The internal flow channels of the heat sink should be as simple as possible to ensure smooth flow of the cooling medium.

3、Design the shape and size of the heat sink according to actual needs to increase the heat transfer area.

4、A reasonable support structure should be designed at the bottom of the heat sink to improve its stability and structural strength.
