As energy storage systems evolve towards large capacity and high energy density, the size matching and compatibility design of ESS Battery Enclosures have become the core issues for improving system efficiency and reliability. This article combines the latest engineering design cases, patented technologies and industry trends to analyze from three dimensions: space utilization, modular compatibility, and cell arrangement and support design.

1- Space Utilization Optimization

The improvement of space utilization of energy storage system integration is essentially a two-way drive of technology iteration and scenario requirements. Through the collaborative innovation of technologies such as large-capacity battery cells, modular architecture, and liquid cooling integration, the industry is moving from "extensive stacking" to "extreme space reuse".

a. Application of large-capacity battery cells: energy density and efficiency leap

Summary of ideas: The application of large-capacity battery cells is essentially to reduce the internal structural level of the battery pack and directly improve the space utilization of the battery cell to the battery pack. Traditional battery packs adopt a three-level integration mode of "battery cell → module → battery pack", and the module structure (crossbeam, longitudinal beam, bolts, etc.) leads to low space utilization. Large-capacity battery cells can directly skip the module level by lengthening or increasing the volume of the single cell, and use CTP (Cell to Pack) technology to directly integrate the battery cell into the battery pack.

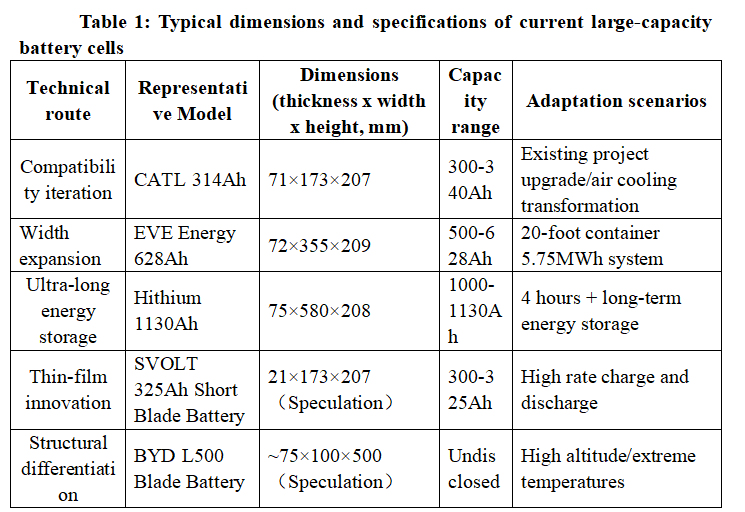

Technical core: Use 600Ah+ ultra-large battery cells to reduce the number of battery cells and connection points, and increase the single cell capacity.

b. Spatial reuse and cost optimization: from "component stacking" to "multi-dimensional reuse"

Summary of ideas: Spatial reuse and cost optimization are two sides of the same coin, and their underlying logic is to break the physical and cost boundaries of traditional energy storage systems through structural simplification, functional integration, material iteration and standardized design.

The core of spatial reuse is to reduce the intermediate links through the extreme simplification of the structural level. For example: the two-in-one design of the high-voltage box: Jiangsu Trina Energy Storage's patented technology combines two high-voltage boxes into one, sharing the total positive/negative relay and electrical connection, reducing the horizontal space occupancy by 30%, and reducing the cost of electrical components by 15%.

Cross-domain reuse of functional modules, integration of structural parts and heat dissipation channels, such as integrating the liquid cooling plate with the bottom plate of the box, and sharing the space between the liquid cooling pipe and the structural support, reducing 15% of independent heat dissipation components; the battery body as a structural part: BYD's blade battery provides support strength through the long and thin side walls of the battery cell, eliminating the module frame, and increasing the space utilization rate to 60%-80%.

Deep optimization of electrical topology, for example, high-voltage cascade topology reduces the number of parallel circuits by increasing the capacity and voltage level of single cells (such as Huawei's smart string energy storage), reducing the physical space of the battery stack by 20%, and shortening the system response time by 50%. Shared relay design, Jiangsu Trina Energy Storage's two-in-one high-voltage box allows two lines to share the same relay, reducing the number of relays and cable length by 50%, and improving installation efficiency by 30%.

2- Cell arrangement and support design: load-bearing, heat dissipation and vibration resistance balance

The essence of cell arrangement is the game between space utilization, heat distribution and mechanical stability. The physical form and arrangement direction of the cell directly affect the space filling efficiency:

a. Optimize the arrangement of cells

Inverted cell design: turn the cell explosion-proof valve downward, so that the thermal runaway exhaust and the bottom ball-proof space are shared, releasing the cell height space and achieving volume utilization.

Lying cell layout: optimize the space utilization in the height direction of the battery pack, increase the proportion of active materials, and significantly increase the volume utilization rate than the vertical cell.

Ultra-long and thin cells: reduce the number of cells per unit volume through the cell length and thinness design, and improve the grouping efficiency.

b. Coupling design of heat dissipation and load-bearing: aims to achieve dual optimization of efficient heat dissipation and structural strength through collaborative innovation of structure, materials and processes.

Structural design path:

Integrated structure, such as conformal design of liquid cooling plate and support beam: embed the liquid cooling channel into the aluminum alloy support beam to reduce independent components and improve space utilization;

Layered and compartmented layout, stacking the battery pack, liquid cooling system, and BMS in layers to reduce the mutual interference between heat flow and mechanical stress;

Bionic mechanics optimization, such as honeycomb/corrugated structure, designing honeycomb or corrugated core layer in the aluminum alloy support frame (such as Mufeng.com patent solution), absorbing vibration energy through deformation, and optimizing the heat dissipation path.

Material innovation path:

Integrated heat conduction and load bearing, such as aluminum alloy composite fiber material (thermal conductivity ≥ 200 W/m·K, strength +30%); intelligent material, phase change filling layer (PCM) absorbs heat and releases slowly, temperature difference ±1.5℃; lightweight damping: elastic silicone cushion absorbs vibration (damping +40%).

Process implementation path:

Precision molding process, such as extrusion molding: used to manufacture aluminum alloy liquid-cooled beams with complex flow channels;

Surface treatment technology, such as generating a ceramic oxide layer on the surface of aluminum alloy to improve corrosion resistance (salt spray test ≥1000h), while enhancing heat dissipation efficiency (surface emissivity increased by 20%);

Intelligent assembly process, dynamic preload adjustment, such as integrating pressure sensors and electric actuators to adjust bolt preload (5-20kN) in real time to avoid overpressure damage to the battery cell.

c. Coordinated design of load-bearing and vibration resistance of the support structure: The support system needs to meet the dual requirements of static load-bearing (battery cell weight + stacking pressure) and dynamic vibration resistance (transportation/earthquake shock).

3- Modularity and compatibility: standardized interface and scalable architecture

The essence of standardized interface adapting to multi-size batteries is to achieve flexible expansion of battery specifications on a unified platform through collaborative innovation in mechanical, electrical and thermal management. The current technology has shifted from static compatibility to dynamic adjustment, and will evolve towards intelligence, lightweight and cross-scenario integration in the future.

a. Collaborative innovation of mechanical structure:

Standardization of mechanical interface: define unified connection device size.

Modular battery pack/cabinet design: build scalable modules and battery cabinets through standardized size battery cells (such as 280Ah, 314Ah batteries), supporting flexible combinations of different capacity requirements.

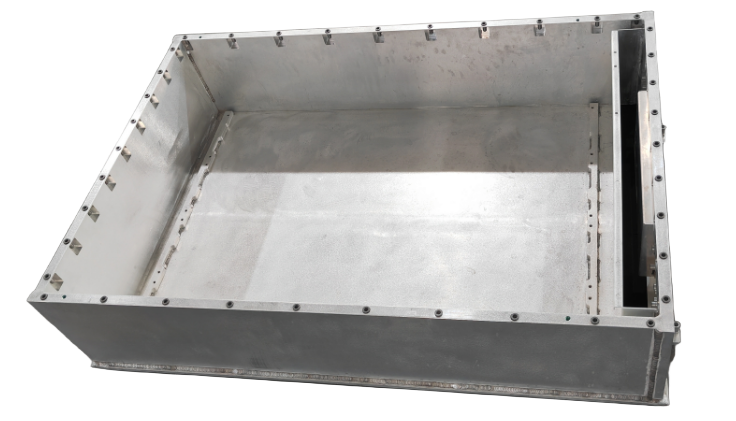

Figure 1-280Ah ESS Battery Enclosure

b. Dynamic adjustment of electrical system

Standardized communication protocols and interfaces, such as BMS compatibility: formulate a unified BMS (battery management system) communication protocol to support seamless connection with PCS and battery cells of different manufacturers; dynamic power adjustment, through virtual inertia control and multi-time scale optimization algorithm, to achieve real-time adjustment of active/reactive power; and adaptive electrical parameter matching design.

c. Intelligent adaptation of thermal management system

Graded thermal management solutions, such as the use of flame-retardant high-rebound foam, thermal conductive glue and other materials at the battery level to balance the insulation and heat dissipation requirements and inhibit heat diffusion; the integrated design of the module-level integrated liquid cooling plate and the insulation layer to improve the cycle life; the system level dynamically adjusts the cooling capacity through variable frequency compressors and multiple cooling branches.

Intelligent monitoring and prediction, multi-sensor fusion. Arrange temperature sensors at key locations such as battery poles and large surfaces to achieve high-precision temperature acquisition; digital twin technology optimizes the heat dissipation strategy in real time through cloud monitoring and predictive maintenance.

4-Summary

The optimization of ESS Battery Enclosure space has shifted from single structural improvement to multi-dimensional collaborative innovation:

The fusion of materials, structure and algorithm, such as the combination of carbon fiber enclosure + CTP technology + AI layout algorithm, will become the mainstream.

Modularization and standardization are accelerating, and the standardized design with Pack as the smallest functional unit will promote the industry to reduce costs and increase efficiency.

The deep binding of thermal management and space utilization, immersion liquid cooling and dynamic temperature control technology further release the potential of space.
